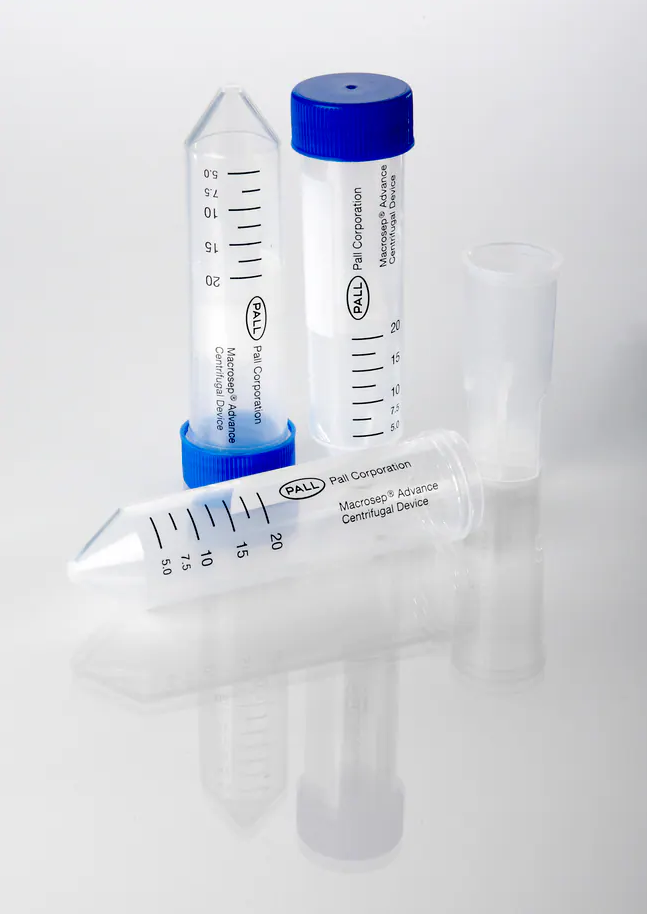

Macrosep™ centrifugal filters, a Pall Life Sciences product, quickly concentrates up to 20 mL of biological sample voles umto 0.5 mL.
Macrosep™ Advance centrifugal devices can be used for a wide range of ultrafiltration applications including the concentration and desalting of proteins, buffer exchange and protein fractionation.
The design of the devices maximizes the effective filtration area allowing for rapid sample processing while maintaining a gentle concentration environment to preserve protein activity and conformation.
Provides high recoveries, typically > 90%
Low protein-binding Omega™ membrane and polypropylene housing minimize losses due to non-specific binding
Versatile ultrafiltration Omega™ membrane is available in a variety of MWCOs
Built-in deadstop prevents spinning to dryness
Color-coded and laser etched for easy identification
Specifications
Materials of construction
Sample Reservoir, Membrane Support Base and Filtrate Receiver: Polypropylene Filter
Media: Supor™(polyethersulfone) and Omega™ (modified polyethersulfone) membranes
Paddle: Polyethylene
Effective filtration area
7.2 cm²
Dimensions
Length: 12.0 cm (4.7 in.) Diameter: 50 mm (1.9 in.)
Operating temperature range
0 – 40°C (32 – 104°F)
Capacities
Maximum Sample Volume: 20 mL Final Concentrate Volume: As low as 450 μL, depending on rotor used
Filtrate Receiver Volume: 22 mL Hold-up Volume: 80 μL (membrane and paddle)
pH range
1 – 14
Maximum centrifugal force
5,000 x g (for ultrafiltration)
Centrifuge
Fits rotors that accept standard 50 mL conical end tubes
|
